Product Detail

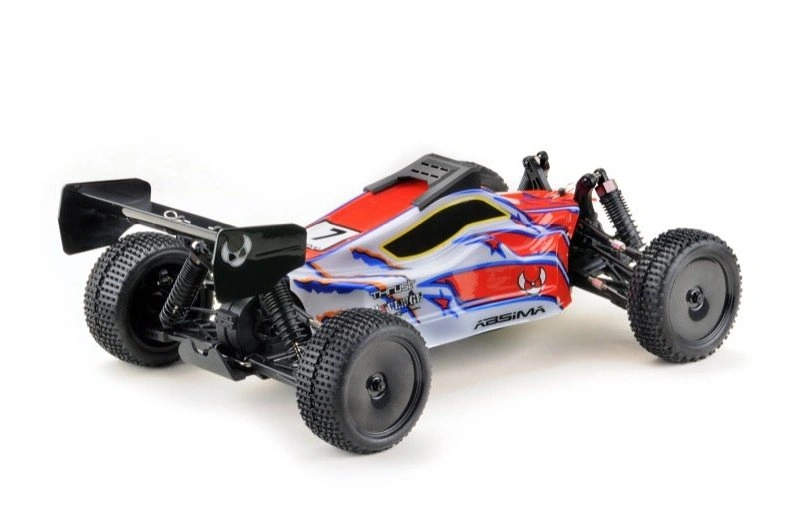

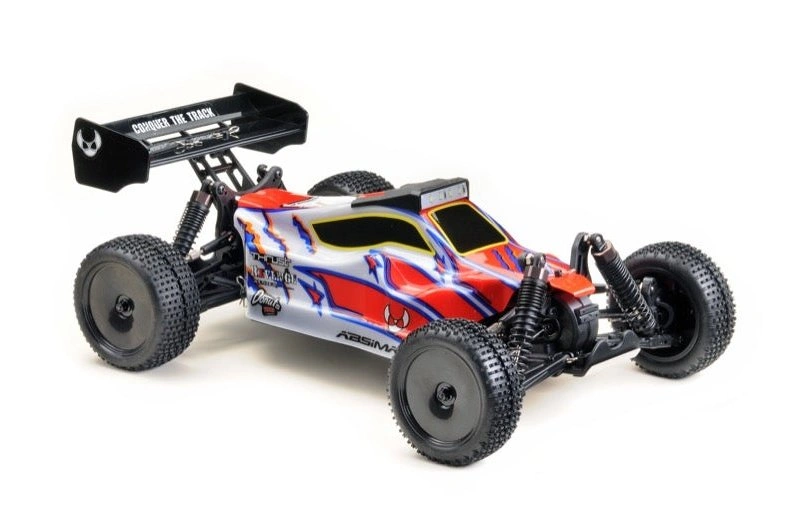

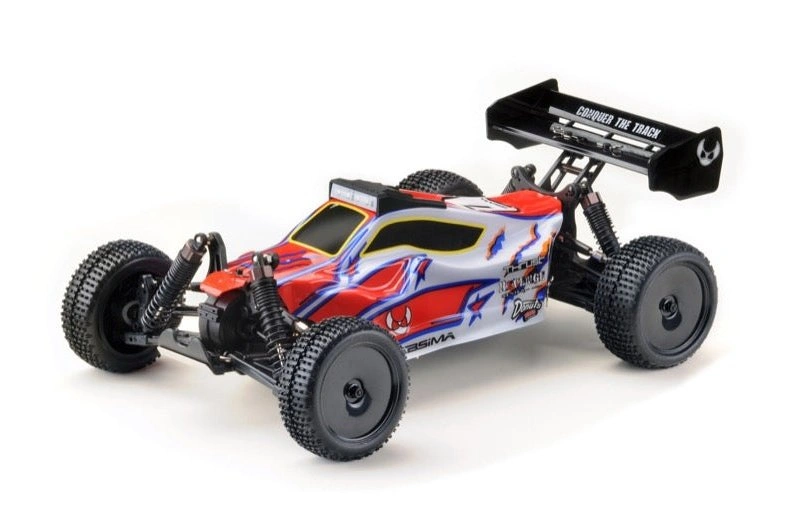

The success story continues! We have equipped the AB3.4 'V2' with some new features that bring the vehicle to the next level of evolution.
Lightweight and compact design, as well as comfortable and ergonomically shaped - these are just two features of our CR4S 4-channel remote control. Of course, all trim, reverse and dual rate functions are available in the cockpit, making adjustments easy via levers and knobs. In addition, the remote control has a 'Beginner Mode' (speed reduction by 50%) and is therefore ideal for pilots who do not yet have so much experience with the handling of such RC vehicles.

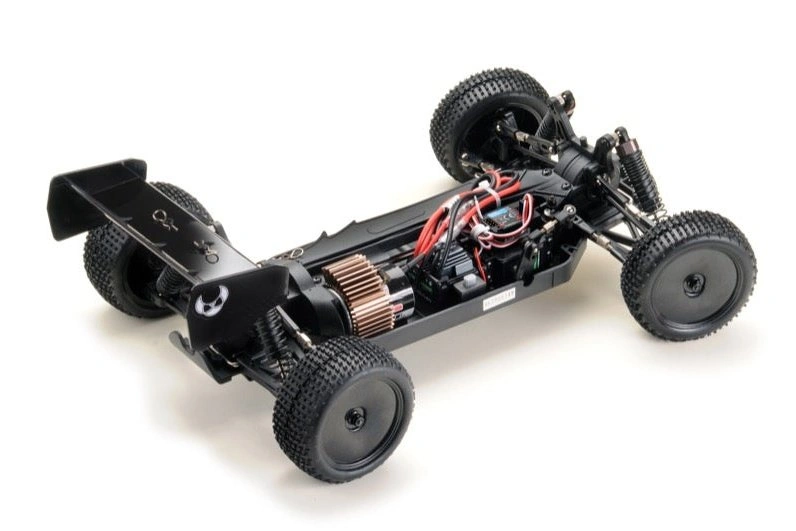

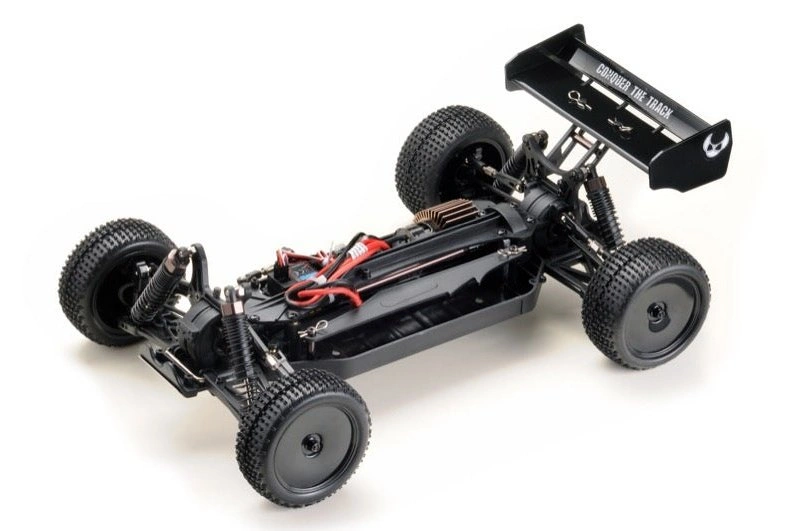

The car is powered by a 540size 15T brushed motor that directly accesses the all-wheel drive system. The two differentials (front and rear) are driven by an aluminium driveshaft. Due to the higher power of the speed controller and the use of T-connectors, any 2S LiPo battery can be used - no matter what the C-rate and capacity.

4 oil-pressure shock absorbers provide ideal handling, so there is plenty of driving fun. A 6kg servo takes over the implementation of the steering commands.


Highlights:

• NEW* 80A brushed speed controller with T-connector and 540 motor
• NEW* Programmable speed controller
• NEW* 6kg steering servo
• NEW* LED lighting
• NEW* Downforce rear wing
• NEW* even more option parts available



Features:

• 4WD all wheel drive
• 2.4GHz 4-channel radio system
• 80A brushed speed controller with T-plug
• 540size 15T motor with 32.000RPM @ 7.4V
• 6kg steering servo (25T, ball bearings)
• Oil shock absorbers
• Ball bearing main drive
• Extremely durable composite plastic parts
• Steel differential outdrives
• Aluminium main drive shaft with steel mounts
• Adjustable upper tie rods
• 5mm aluminium motor mount
• 6mm shock towers
• 2 differentials (front/rear)
• Stylish 'Cap Forward' buggy body
• 'Light-Weight' chassis (less weight - longer drive time)
• Many aluminum option parts available



Specifications:

• Scale: 1:10
• Dimensions (L/W/H): 380x255x155 mm
• Weight: 1400g
• Wheelbase: 270mm
• Ground clearance: ca. 30mm
• Track width: 215mm front/rear
• Front wheels: 88mm / Width: 33mm
• Rear wheels: 88mm / Width: 42mm
• Shock absorber oil: 400CPS
• Shock absorber installation length: 90mm
• Motor ratio: pinion 23T / main gear 64T (module 0,6)



Inside The Box:

• 1/10 Buggy 'AB3.4V2' RTR
• 2.4GHz 'CR4S' radio
• Sticker sheet
• Manual



Required for Use:

• 4x AA Batteries for radio
• 7.2V NiMH or 7.4V* LiPo car battery (*recommended)
• Charger (suitable for car battery)
• Programme card for individual settings of the speed controller
